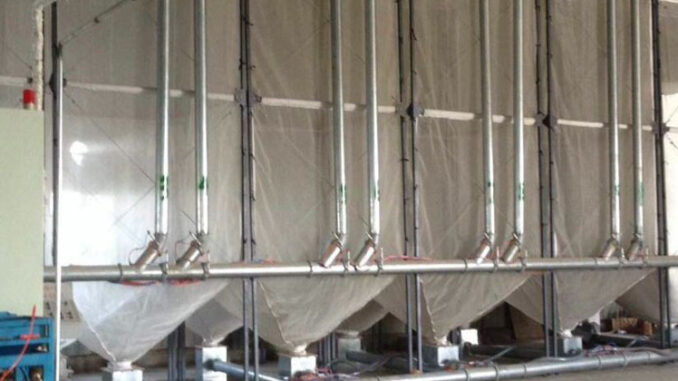

EPS silo is to store the EPS foam pre expanded granules or recycled granules.The EPS materials will be in and out of the silo.To work with it,user can work it manually or automatically.EPS sensor is known as storage level sensors which is installed on the EPS silo , there are two material-level sensors installed in one silo.The EPS silo will be automatic silo which can be controlled automatically by system in screen display.
Since of sensors,the system will see and respond accordingly for on/off with its controlling valves.So,the conveying of EPS materials will be controlled automatically.
· Up sensor: stop feeding when the upper material level is sensed
· Down sensor: start feeding when the lower material level is sensed
· Supply voltage: 220V/110V/24V
· Contact capacity: 250VAC/5A (resistive load)
· Medium temperature: -30-80 degree
· Blade speed：1rpm
· Blade material: SU304
· Blade specification：100X40MM
· Electrical interface M20X1.5
· Applicable material specific gravity: >0.4g/cm3
· Installation mode: horizontal or vertical installation
· Product features: compact structure, small shape, zinc alloy shell, solid and reliable
Application of EPS sensor
The sensors will be installed in EPS silo to control the feeding of EPS materials.
