Automatic foam granules equipment recycles the EPS waste

Application
The foam granules equipment can recycle the eps foam waste like eps package box,eps insulation sheets into beads which can be raw materials for XPS insulation sheets,Plastics,window frame etc.

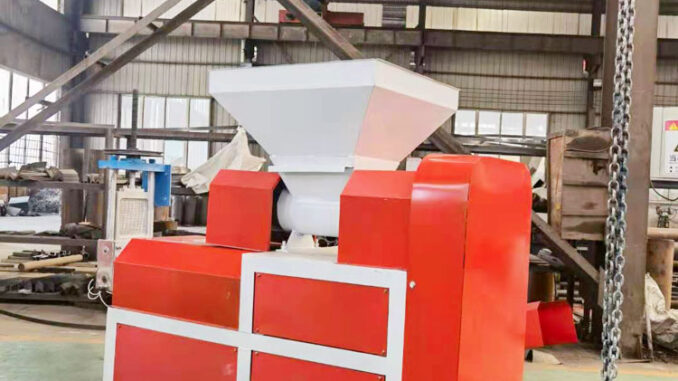

EPS pelletizer

foam granules equipment working procedure
The big eps foam waste is recycled by the eps shredder into small scraps which will then be transported by pipes into the storage silo on the foam granules equipment,the scraps will be plastified and melted in the foam granules equipment and output the melted noodles,the noodles will be cooled down in the water container and cut in the beads cutter machine.

foam granules equipment line composition
Item  name
Model No.
Configuration
Eps shredder
800
5.5kw
Pipe

220mm
Storage Silo

2500*2500*2500mm
Pelletizer
220
Split type machine,Temperature control function
Water container

2000*450*450mm
Beads Cutter
150
0.75kw


Eps shredder
Model no.
 power
 capacity
 Input size
 Remark
800
5.5kw
 150-200 kg/h
 800*600mm
Single shaft
1000
5.5kw
  250-350 kg/h
1000*650mm
Single shaft
1500
7.5kw
 450-500 kg/h
1500*650mm
Single shaft
D1500
15kw
500-600 kg/h
1500*650mm
Dual shafts

foam granules equipment
Model No. & Type
Power(kw)
Capacity(kg/h)
Center(mm)
Input(mm)
Particle(mm)
220 divided
15
100-150
620
300
4-6
320 divided
18.5-22
225-250
780
330
4-6
350 divided
22-30
300-350
820
350
4-6

Warranty
We give our foam granules equipment with one year warranty. all electronics and machine parts with design or quality problem are required to be exchanged freely within one year.

We give our machine lifelong service. Free instructions for machine operation,free instructions for repairing machine at buyer’s will if any. We offer cost price for the electronics and machine parts out of one year if any problem occurs.

Software from our company is available for free update and installation if the foam granules equipment is installed with software.

Technical support is available 24/7.
