Application
The EPS pellets equipment can recycle the eps foam waste like eps package box,eps insulation sheets into beads which can be raw materials for XPS insulation sheets,Plastics,window frame etc.
EPS pellets equipment working procedure
The big eps foam waste is recycled by the eps shredder into small scraps which will then be transported by pipes into the storage silo on the EPS pellets equipment,the scraps will be plastified and melted in the EPS pellets equipment and output the melted noodles,the noodles will be cooled down in the water container and cut in the beads cutter machine.
EPS pellets equipment line composition
Item name | Model No. | Configuration |
Eps shredder | 800 | 5.5kw |
Pipe | 220mm | |
Storage Silo | 2500*2500*2500mm | |
Pelletizer | 220 | Split type machine,Temperature control function |
Water container | 2000*450*450mm | |
Beads Cutter | 150 | 0.75kw |
Eps shredder
Model no. | power | capacity | Input size | Remark |
800 | 5.5kw | 150-200 kg/h | 800*600mm | Single shaft |
1000 | 5.5kw | 250-350 kg/h | 1000*650mm | Single shaft |
1500 | 7.5kw | 450-500 kg/h | 1500*650mm | Single shaft |
D1500 | 15kw | 500-600 kg/h | 1500*650mm | Dual shafts |

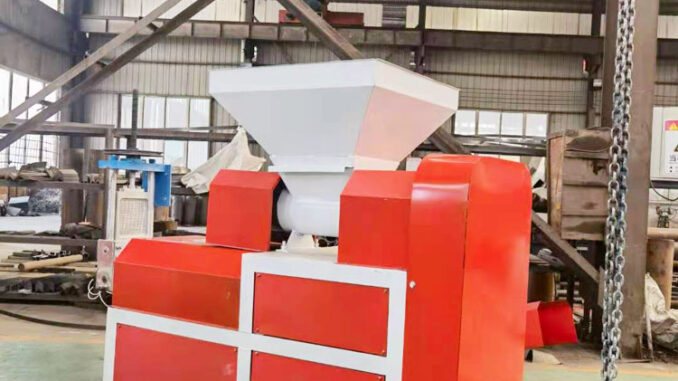

EPS pellets equipment
Model No. & Type | Power(kw) | Capacity(kg/h) | Center(mm) | Input(mm) | Particle(mm) |
220 divided | 15 | 100-150 | 620 | 300 | 4-6 |
320 divided | 18.5-22 | 225-250 | 780 | 330 | 4-6 |
350 divided | 22-30 | 300-350 | 820 | 350 | 4-6 |
Warranty
We give our EPS pellets equipment with one year warranty. all electronics and machine parts with design or quality problem are required to be exchanged freely within one year.
We give our machine lifelong service. Free instructions for machine operation,free instructions for repairing machine at buyer’s will if any. We offer cost price for the electronics and machine parts out of one year if any problem occurs.
Software from our company is available for free update and installation if the EPS pellets equipment is installed with software.
Technical support is available 24/7.
